1982-92 Camaro REVERSE Double DIN Install Kit (Bezel & Brackets)

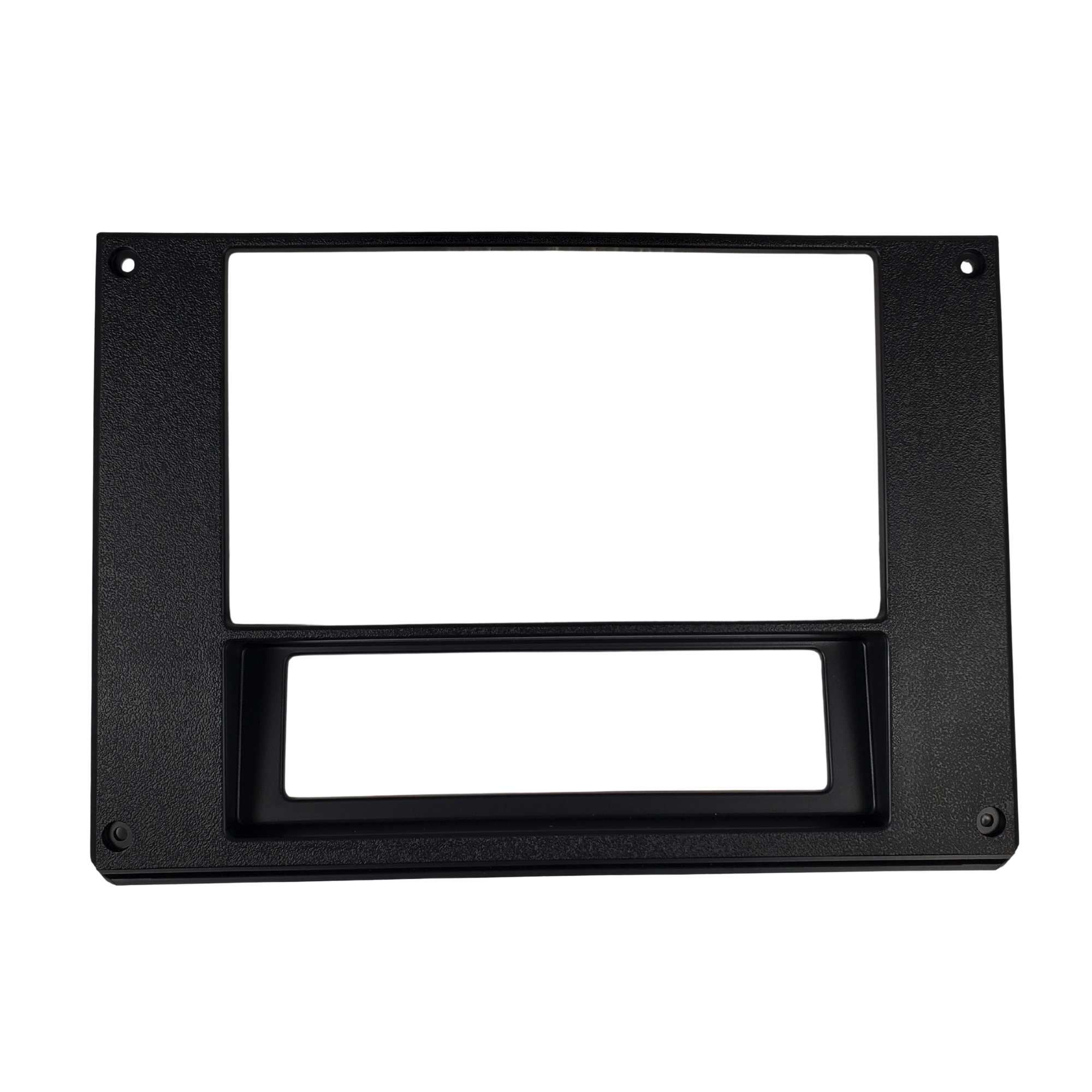

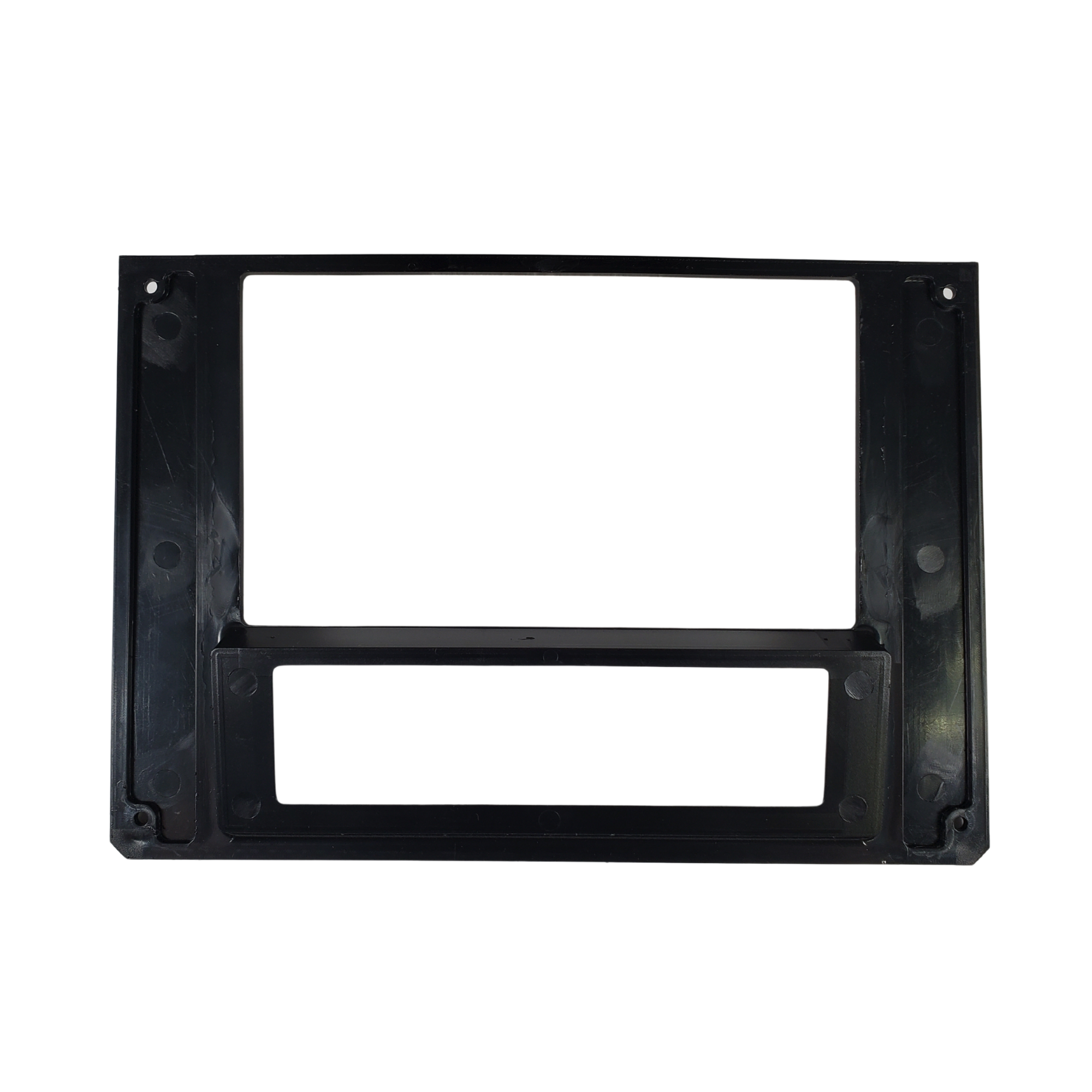

Upgrade your third-gen Camaro with our Reverse Mount Double Din Radio Kit, designed to position your double din radio above the factory AC controls for a unique and modern layout. This kit includes our OEM-style injection molded bezel, precision aluminum mounting brackets, and the angled spacers needed to correct the angle of your AC controls when relocated below the radio.

Like all our bezels, this is injection molded, not 3D printed — ensuring the highest-quality finish and a perfect fit that looks factory fresh.

Key Features:

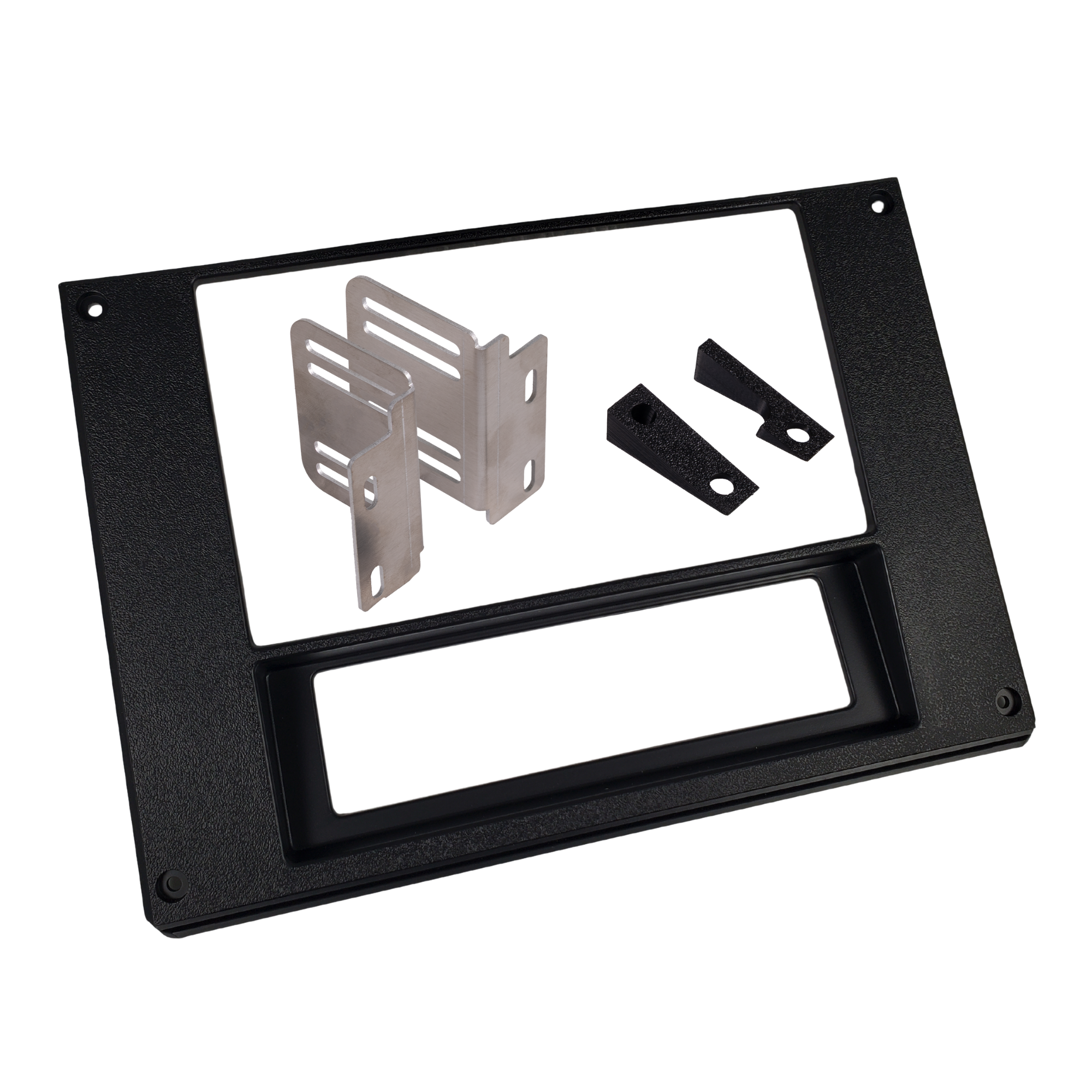

• Complete Reverse Mount Kit – Includes bezel, aluminum brackets, and spacers

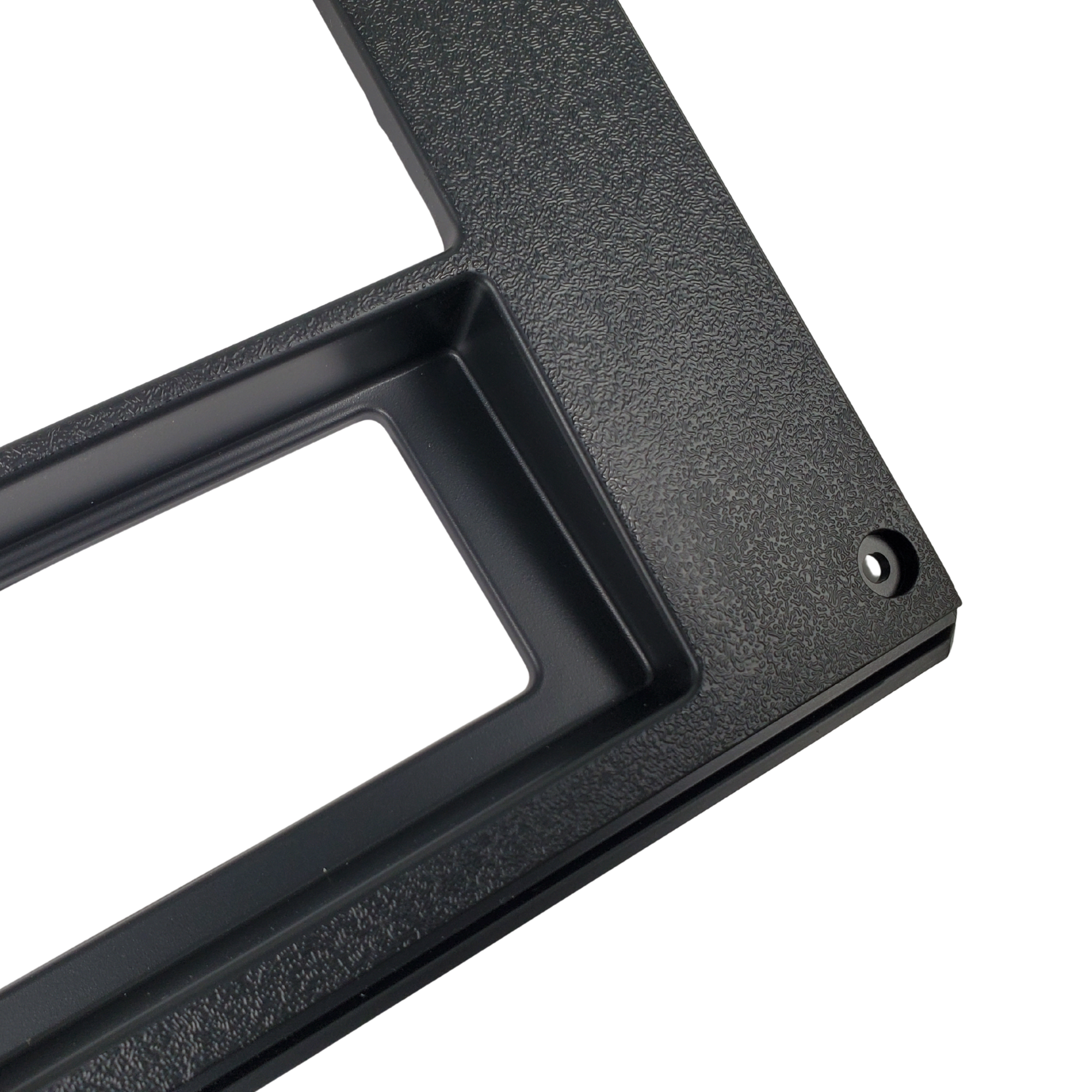

• OEM-Style Finish – Injection molded bezel matches the original dash look

• Corrected AC Control Angle – Includes spacers for a clean, functional relocation

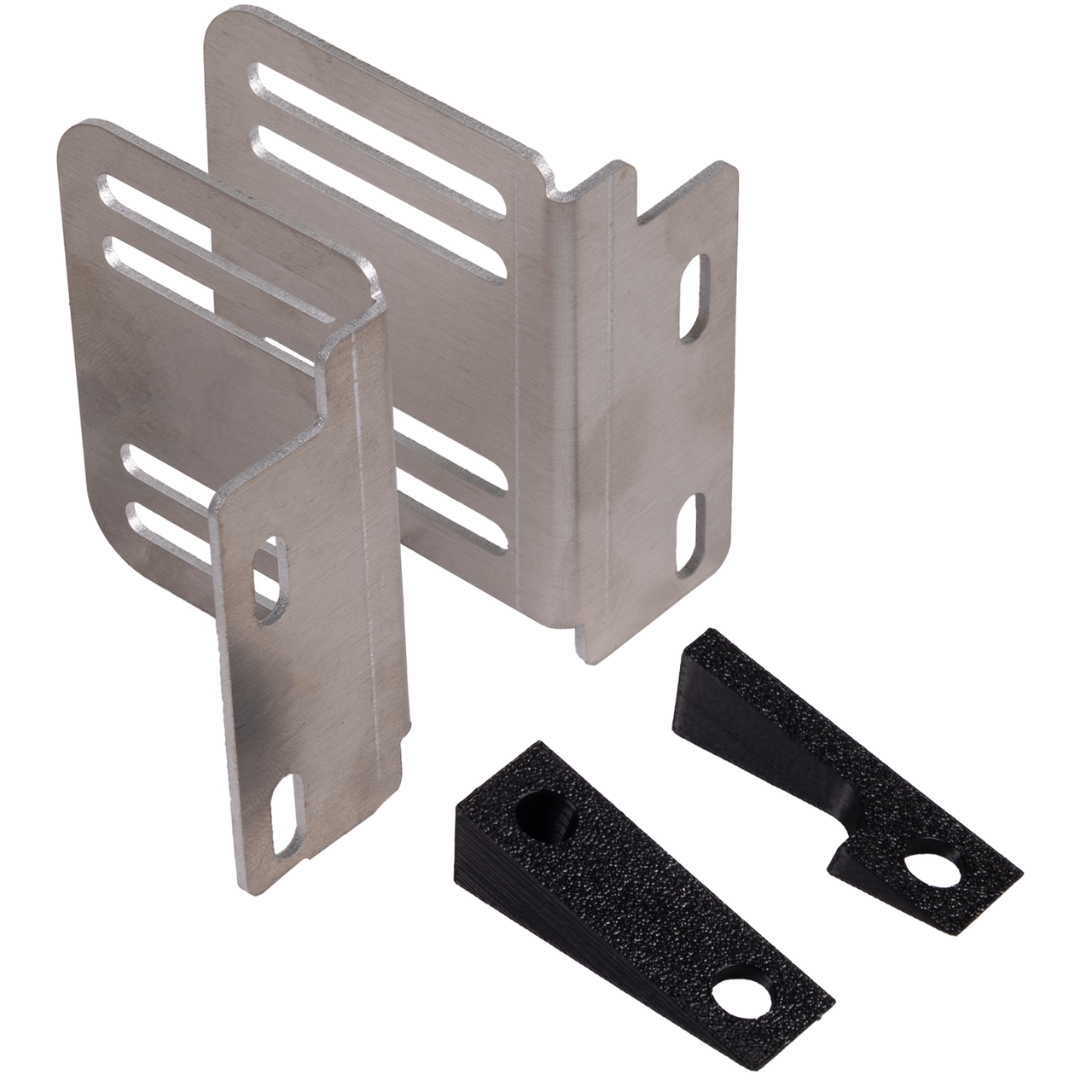

• Secure Mounting – Aluminum brackets are slotted for easy adjustments

• Shallow Radio Compatible – Designed for shallow radios under 4.5" deep to maintain clearance

• Factory-Like Integration – Achieve a custom, high-end look with reliable fitment

Fitment:

• 1982–1992 Chevrolet Camaro

• Fits Base, Berlinetta (exlc. Digital Dash models), Z28, RS, and IROC-Z models

Installation Notes:

• Opening measures 3.985" x 7.11", standard for double din radios

• Shallow-depth radios are highly recommended for proper clearance

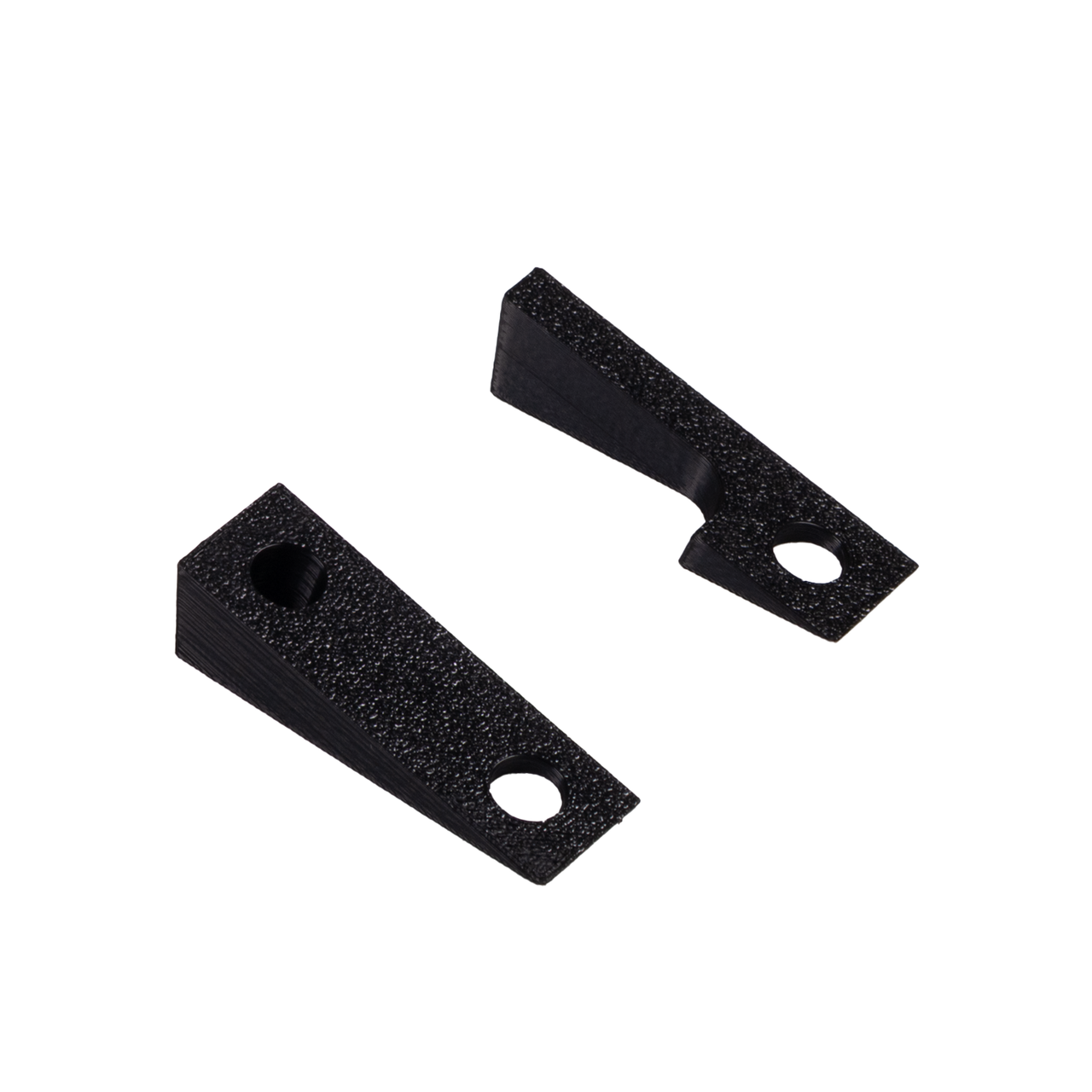

• Includes spacers to ensure your AC controls sit at the correct angle after relocation

• Minor trimming may be required for some radio models

Why Choose This Kit:

For Camaro owners looking for a more modern dash layout, the Reverse Mount Kit delivers an OEM-level finish with the radio relocated above the AC controls. With injection-molded quality and bracket adjustability, you’ll achieve a clean, precise installation every time.
